Our infrastructure

Machine Park

Our 7,000 m² facility houses five CNC machining centers and a Ø2 x 5 m composite autoclave inside an ISO 8 clean room - enabling precision production from prototype to series, with full in-process quality control and digital traceability.

Precision machining

Five CNC machining centers

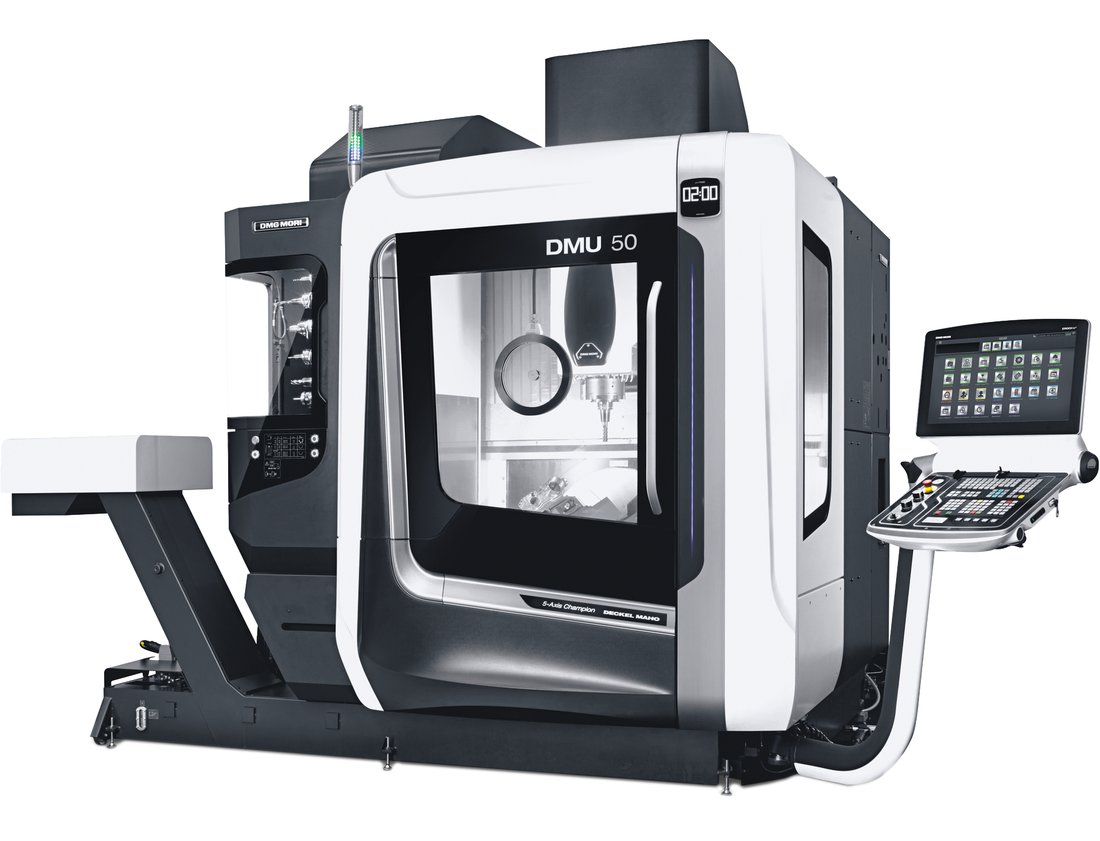

DMG MORI DMU 50 Gen 3 - 5 Axis

Full 5-axis simultaneous interpolation for complex airframe nodes and wing ribs in a single setup.

Travel X650 / Y520 / Z475 mm, up to 300 kg

20 kW spindle, accuracy down to 4 µm

Ti-6Al-4V, Al 7075, 17-4PH, +/- 0.01 mm

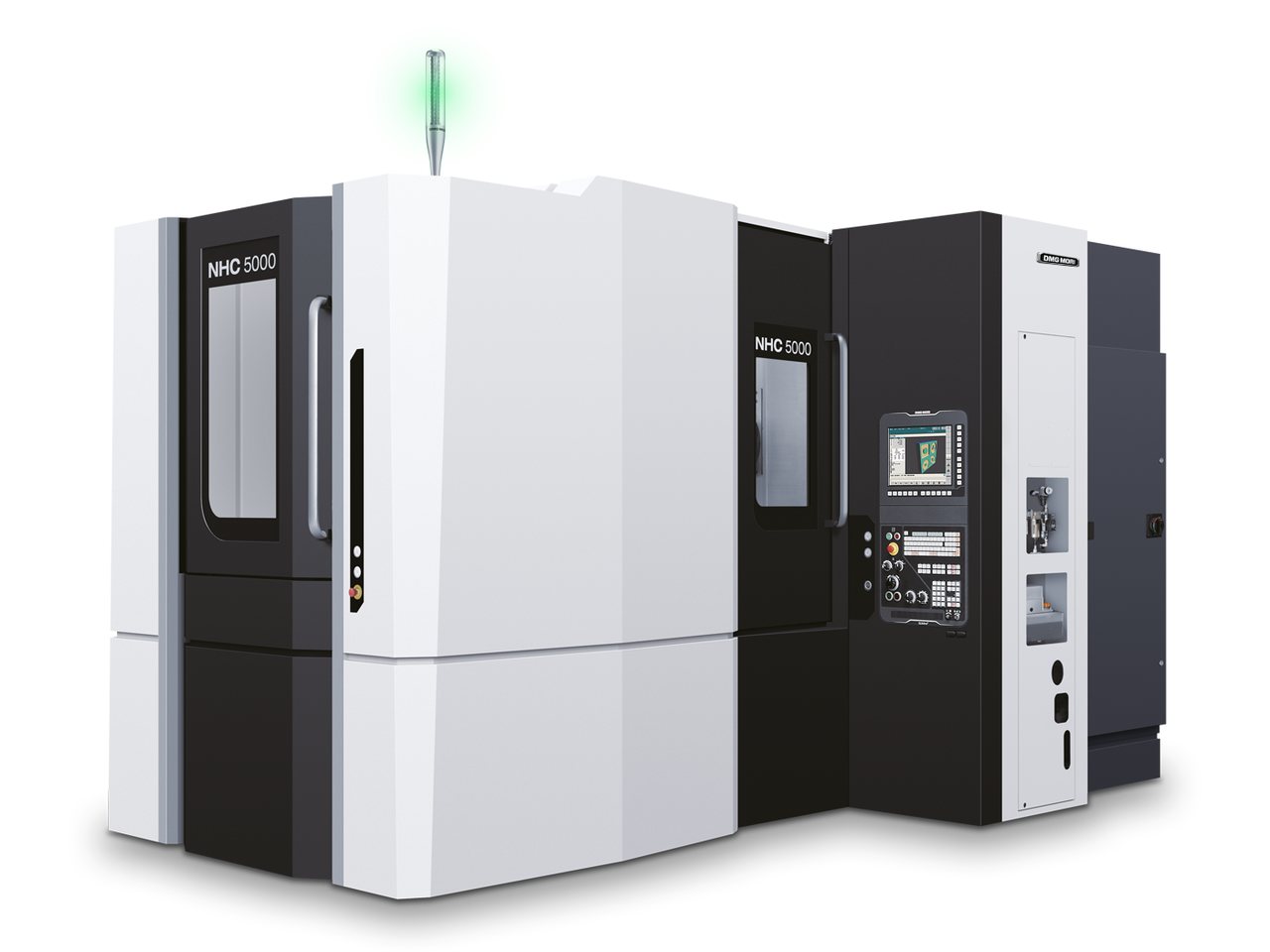

DMG MORI NHC 5000 - 4 Axis (x3)

Three horizontal machining centers with dual pallets - mass-manufacturing workhorse for gearbox and transmission housings.

Travel X730 / Y730 / Z880 mm, up to 700 kg

Boring up to Ø 730 mm, 1.7 µm roundness

Aluminum, castings and steel alloys

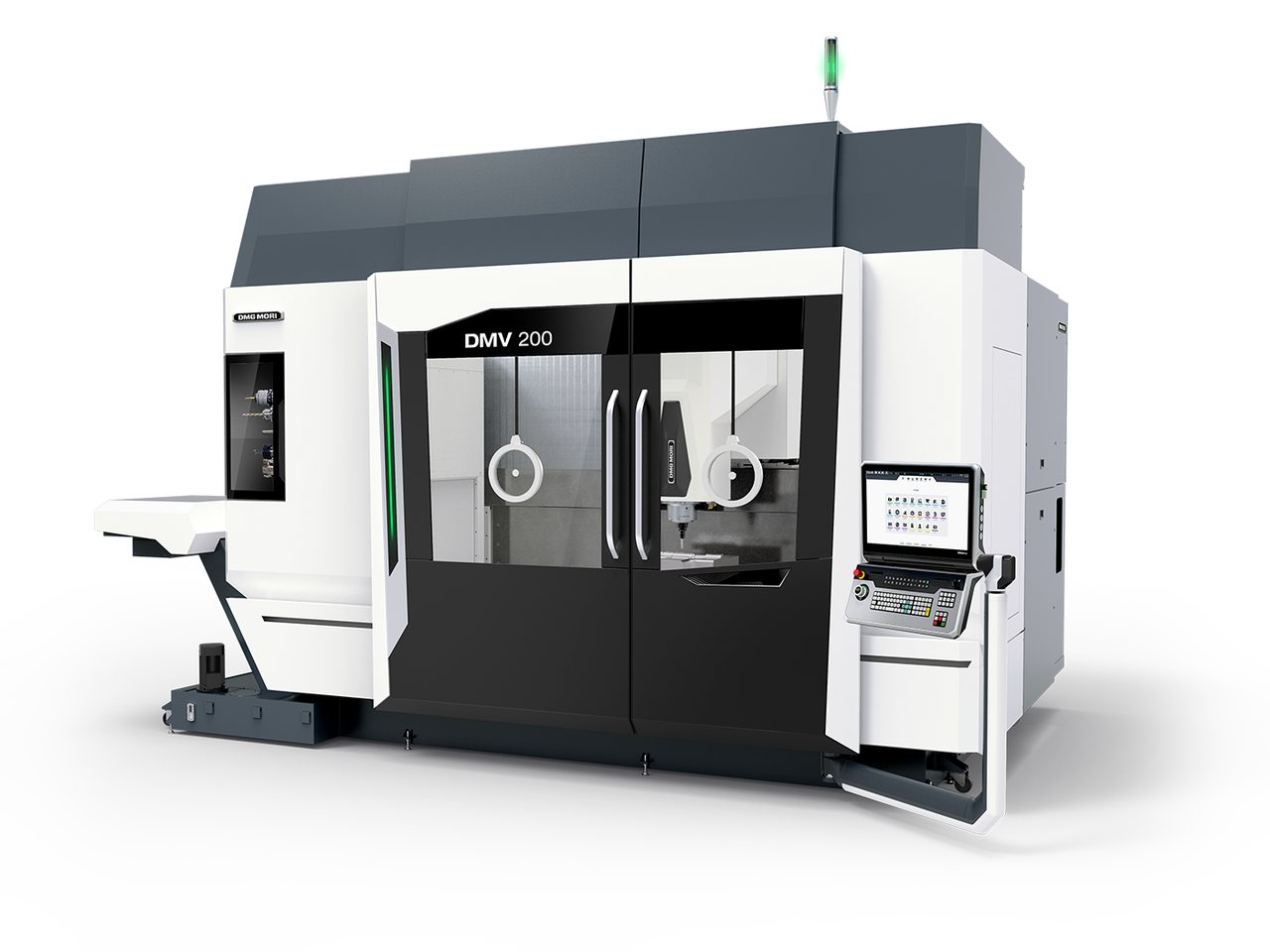

DMG MORI DMV 200 - 3 Axis

Large-scale vertical center with 2,000 mm X-travel for structural floor plates and backbone beams.

Travel X2000 / Y700 / Z550 mm, up to 3,000 kg

Direct drive, chip removal over 1,200 cm³/min

Aluminum, tool steel, stainless, titanium

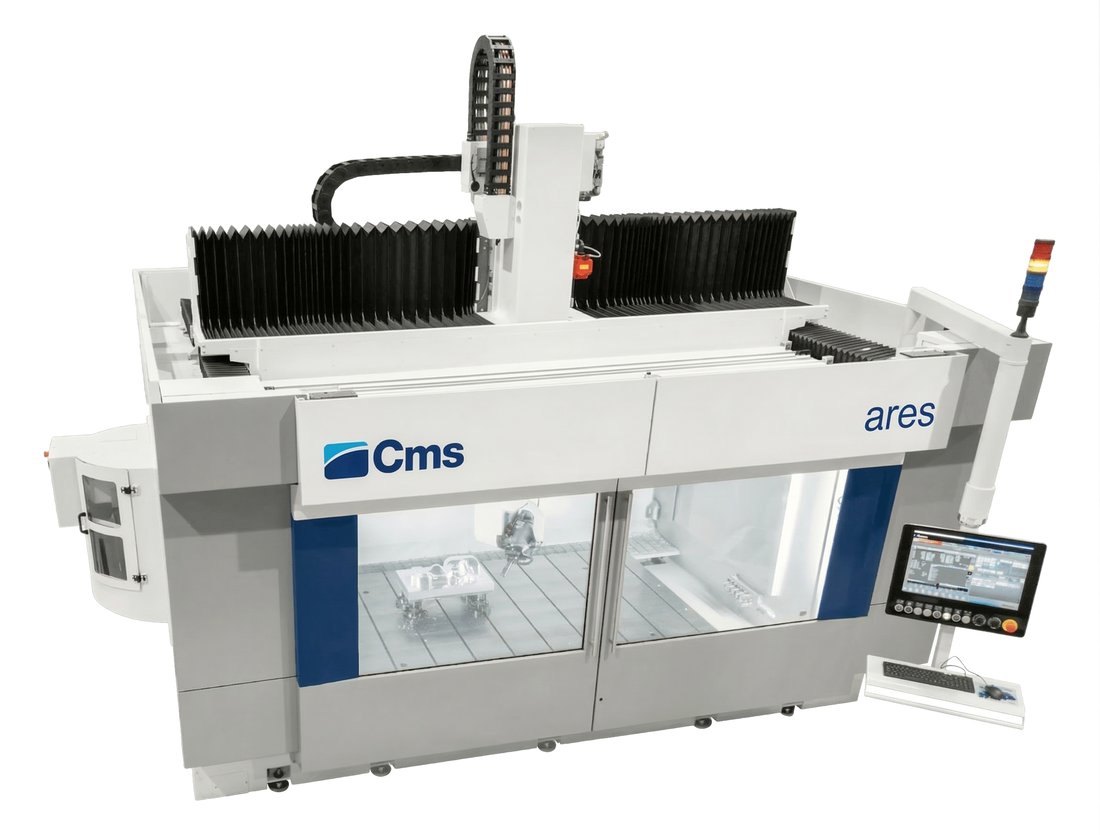

CMS ARES 3618 - 5 Axis Gantry

5-axis high-speed moving-bridge gantry for composites and light alloys - net-shape trimming of large parts.

Travel X3600 / Y2600 / Z1200 mm, up to 3,000 kg

15 kW spindle, accuracy down to 0.02 mm

CFRP, foam, EPS, fiberglass, honeycomb

Composite manufacturing

Autoclave & clean room

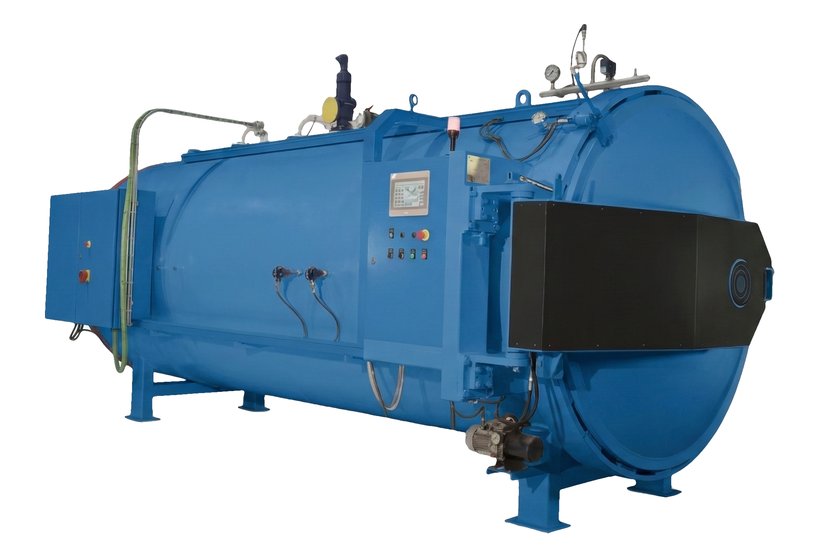

Composite autoclave

Aerospace prepreg autoclave with AMS2750 thermal control and Siemens PLC recipe automation, sized for UAV wings and business-class seat-shell tooling.

Ø 2,000 x 5,000 mm usable working volume

10 bar air/nitrogen, up to 250 °C, ±2.8 °C uniformity

20 vacuum + 24 thermocouple ports, EN 13445 PED / CE certified

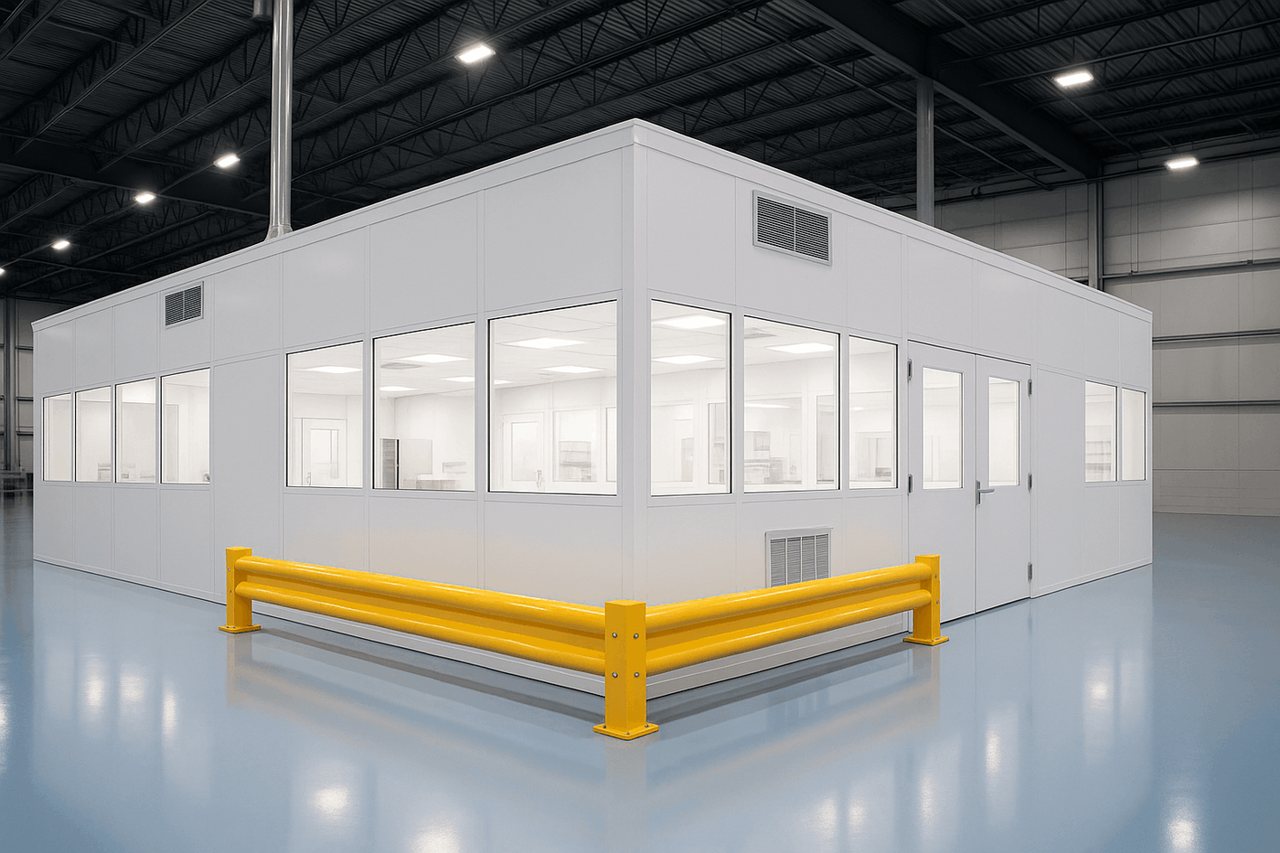

ISO 8 Clean Room

Controlled environment for CFRP/GFRP hand lay-up and precision vacuum bagging with integrated cold storage.

ISO 8 (Class 100,000), 26 H14 HEPA filters

17,500 m³/h airflow, 105 kW cooling

On-site prepreg cold chain

Quality & metrology

Inspection & certification

Operating with full digital traceability from XRF-verified raw material to finished part.

Precision CMM dimensional inspection with automated reporting

First Article Inspection (FAI)

XRF spectrometry for 100% material verification

Serial-level part marking & traceability

Request a capability statement
